Thông tin chi tiết sản phẩm:
Thanh toán:
|
Loại sợi: | SM G652.D, SM G657A, OM1, OM2, | Số lượng sợi: | Simplex, duplex, 4cores, 6 lõi |
---|---|---|---|
Đường kính cáp: | 0,9mm, 1,6mm, 2,0mm, 2,4mm hoặc 3,0mm | Cabe Jacket: | PVC và LSZH tùy chọn |
Connector Typefunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePa: | SC, FC, LC, ST, MU, MTRJ, DIN, D4, v.v. | Loại đánh bóng: | PC, UPC & APC tùy chọn |
mất chèn: | PC, UPC <0,2dB, APC <0,3dB | Mất mát trở lại: | PC MM> 35dB, SM UPC> 55dB, SM APC |
Nhãn hiệu: | HY SINH | Hải cảng: | Thâm Quyến |
Điểm nổi bật: | Đầu vá sợi quang FTTH,Dây cáp quang LSZH,Đầu mối vá sợi quang DLC |

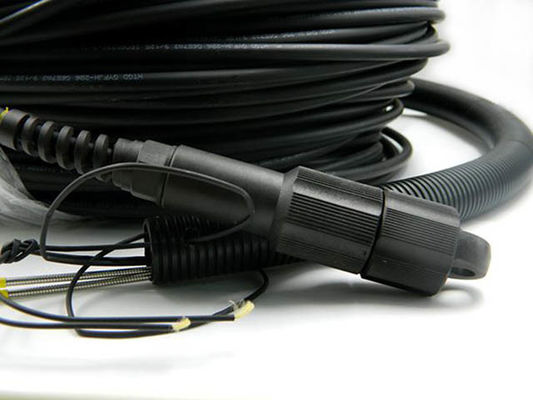

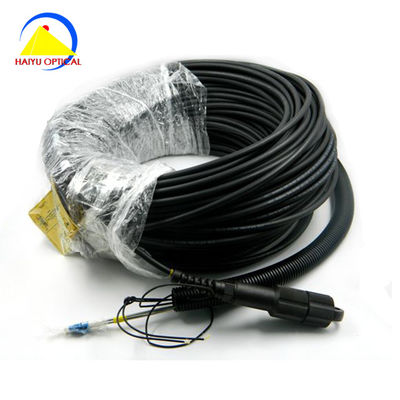

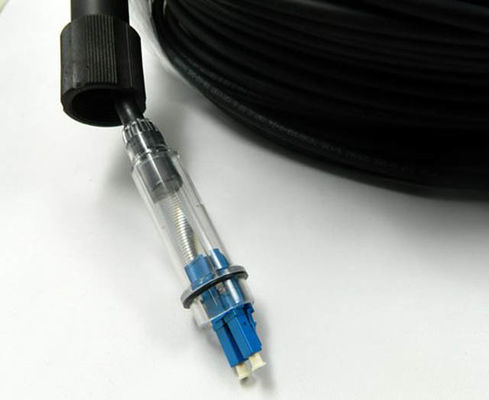

DLC Waterproof fiber optic patch cord is standard size
for Duplex LC Connectors, and the outer housing with
metal device;
Descriptions
PDLC Waterproof fiber patch cord is standard size for Duplex LC Connectors, and the outer housing with metal protective device. The connecting is safe and reliable. Also have the functions of waterproof, dustproof. This patch cords widely used in FTTA, Base station, and the outdoor waterproof condition.
Features
1. Standard Duplex LC connector, well connected with standard LC adaptor
2. Available Single mode and Multimode
3. IP678protection, salt-mist proof, humidity proof, dust proof
4. Aluminum housing, high shock and vibration
5. Broad temperature range and wide range of indoor and outdoor cables
6. Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
7. Easy Operation, reliable and cost-effective installation
Applications
l 3G 4G base station used
l Aerospace & Defence
l Equipment diagnosis
l FO sensor
l FTTA ,FTTP, FTTX,WIMAX
l BBU, RRU, RRH, LTE
Functional Parameter
Item |
Description |
Standard |
|
Cable Model |
GYFJH-2A1 |
|
|
Number Optic-cable Core |
2 |
|
|
Weight Kg/km |
45.0 |
|
|
Outside Dia. mm |
Φ7.0±0.2 |
|
|
Outer Sheath |
material |
LSZH |
YD/T 1113-2001 |
color |
BLACK |
|
|
thickness |
1mm |
|
|
Tight buffer |
material |
FRP |
|
Dia. mm |
Φ1.0±0.1 |
|
|
Subunit |
Quantity(pcs) |
2 |
|
Sheath Dia. |
Φ2±0.1mm |
|
|
Sheath Material & Color |
LSZH & yellow |
|
|
Reinforced core |
aramid fiber |
|
|
Mark Unit |
Differ A,B,C and D fiber within 10mm |
GB/T 6995.2 |
|
Fiber core |
Fiber Type |
G.652D |
|
sheath color |
white |
|
|
Sheath material |
LSZH |
|
|
Out-Dia fiber for Tight layer |
0.90±0.05 mm |
|
|
Fiber specification |
9/125(G652D) |
|
|
Allowable Tension |
Short term ≥500N |
|
|
Long term ≥300N |
|
||
inflaming retarding Class |
Confirm to IEC60332-3C |
|
|
Mini Bending radius |
10D |
|
|
Fiber Cable Printing |
Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date |
|
|
Working life |
≥25years |
|
*all materials confirm to RoHS
OEM & ODM is accepted, any questions welcome to contact us.
